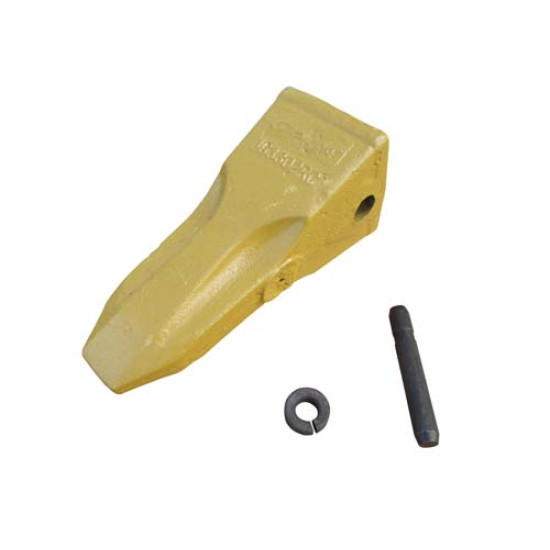

J300 Rock Chisel + Pin + Lock

J300 Rock Chisel + Pin + Lock

FOLLOWING ARE THE APPROXIMATE MEASUREMENTS OF THIS ITEM. PLEASE DOUBLE CHECK YOUR NEEDS AGAINST THIS TO MAKE SURE YOU PURCHASE THE CORRECT SIZE J300 SERIES COMPONENTS FOR YOUR EQUIPMENT.

LENGTH : 9''
OPENING OUTER HEIGHT : 4''
OPENING OUTER WIDTH : 3.625''
OPENING INNER HEIGHT : 3''
OPENING INNER WIDTH : 2.625''
PIN LENGTH : 3.625''
PIN DIAMETER : 0.56''

Fits :

** Caterpillar ** -
205B , 205L , 206 , 211B , 212 , 212B , 215 , 215B , 215C , 215D , 219 , 219D , 224B , 235B , 235C , 235D , 245D , 311F , 312D , 312E , 312F , 313D , 313F , 314E , 314F , 315 , 315B , 315C , 315D , 315F , 315L , 316E , 316F , 317 , 317B , 318B , 318C , 318D , 320 , 320B , 320C , 320D , 320E , 320G , 320L , 320N , 320S , 321B , 321D , 322 , 322B , 322C , 322L , 322N , 323 , 323F , 324E , 325 , 325B , 325F , 325L , 330 , 330B , 330L , 623E , 936F , 938F , 938G , 950B , 950E , 950F , 950G , 950H , 950M , 953B , 953C , 955L , 960F , 962G , 962H , 963 , 963B , 963C , 963L , 966C , E180 , E180L , E200B , M317D , M318D , M318M , M320 , M320D , M320M
Replaces OEM Numbers :
1U3302RC,1U-3302RC,8E6259,8E-6259,9J2308,9J-2308
